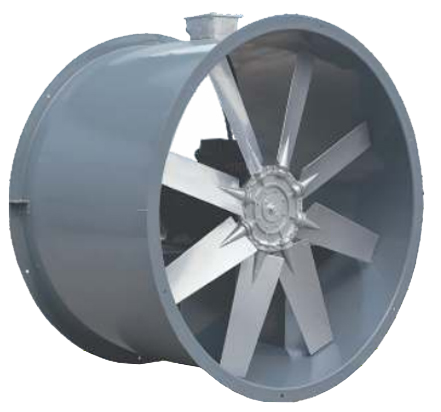

Axial Flow Fans
Crystal Axial Flow fans are designed for air ventilation in commercial or industrial building and are available from 315 mm dia to 1800 mm dia that covers the cfm upto 100000 The blade pitch is field adjustable to accommodate system changes.
The casing design and construction are well suited for indoor or outdoor applications and can be easily installed inducted or non-ducted systems Fans and blades are designed to reduce operating cost with improved efficiency design offers inherently lower sound level than other axial fans.
Types :
Axial flow fan (Normal Series)
Axial flow fan (High Temp. Series for 250 & 300 upto 2 hrs)
Application :
General Ventilation
Emergency Smoke and Heat Exhaust
Car Ventilation / Basement
Stairwell pressurization
Options :
Pedestal Stand | Bird Screen | Sound Attenuator
Construction:
Fan casing is made of heavy gauge M.S. Sheet. It has flanges at both ends for easy fixing Impellers is made of Die cast aluminium having Aerofoil design with adjustable pitch angle Maintenance free reliable IEC motors
The casing design and construction are well suited for indoor or outdoor applications and can be easily installed inducted or non-ducted systems Fans and blades are designed to reduce operating cost with improved efficiency design offers inherently lower sound level than other axial fans.
Types :
Axial flow fan (Normal Series)
Axial flow fan (High Temp. Series for 250 & 300 upto 2 hrs)
Application :
General Ventilation
Emergency Smoke and Heat Exhaust
Car Ventilation / Basement
Stairwell pressurization
Options :
Pedestal Stand | Bird Screen | Sound Attenuator
Construction:
Fan casing is made of heavy gauge M.S. Sheet. It has flanges at both ends for easy fixing Impellers is made of Die cast aluminium having Aerofoil design with adjustable pitch angle Maintenance free reliable IEC motors
